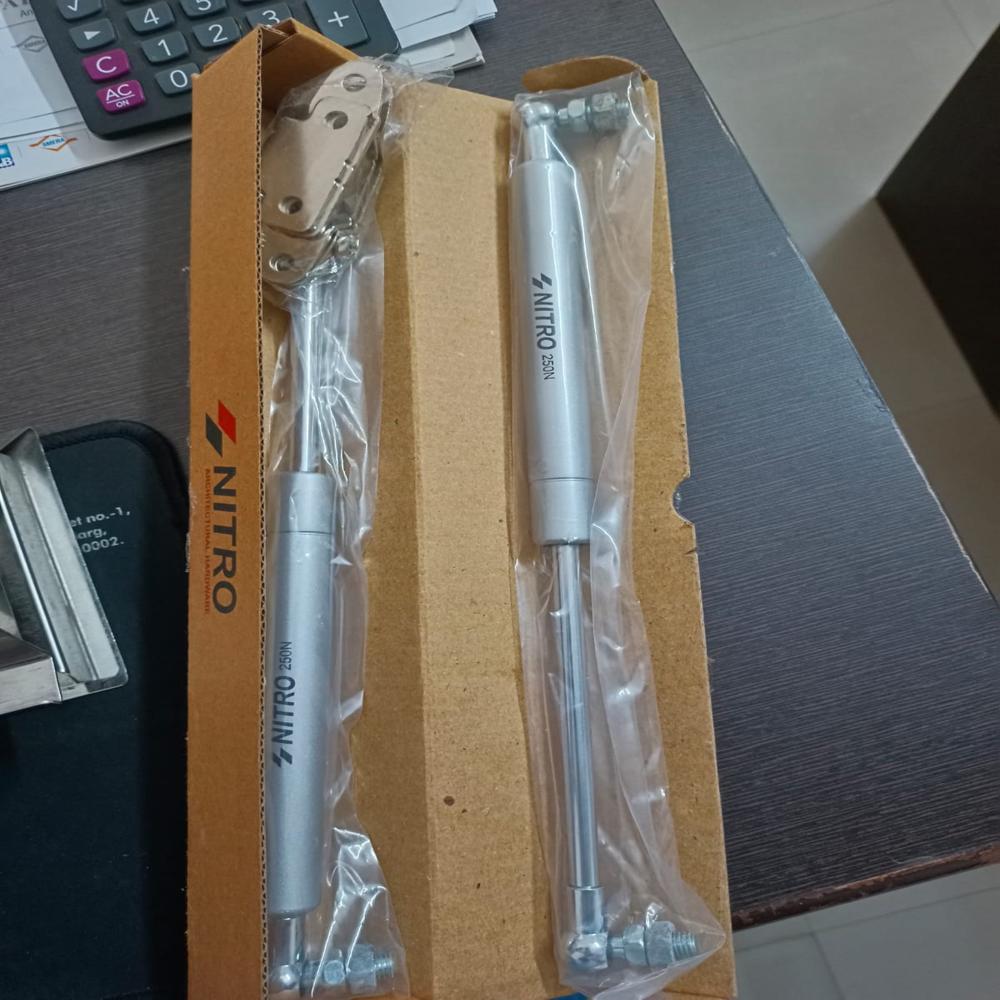

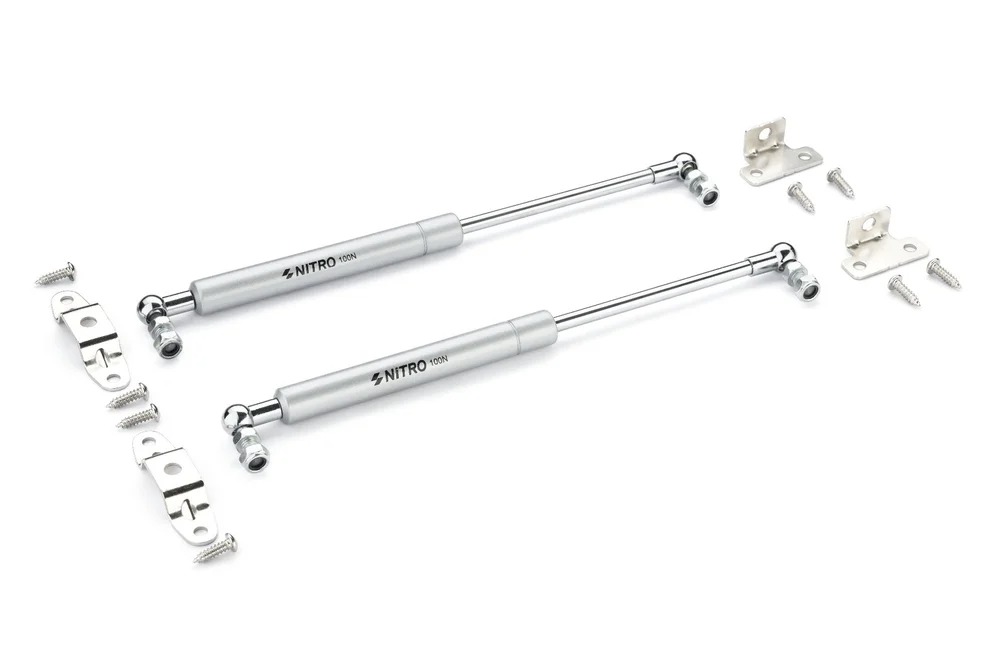

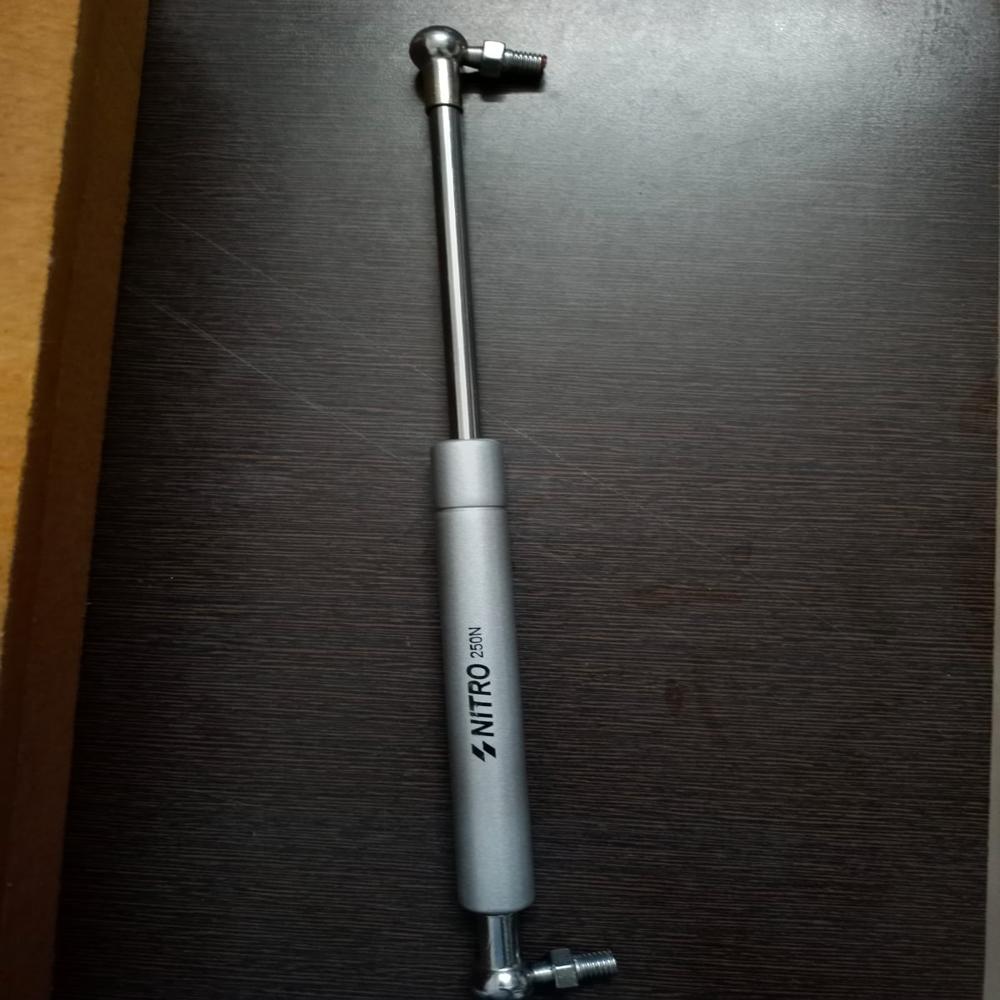

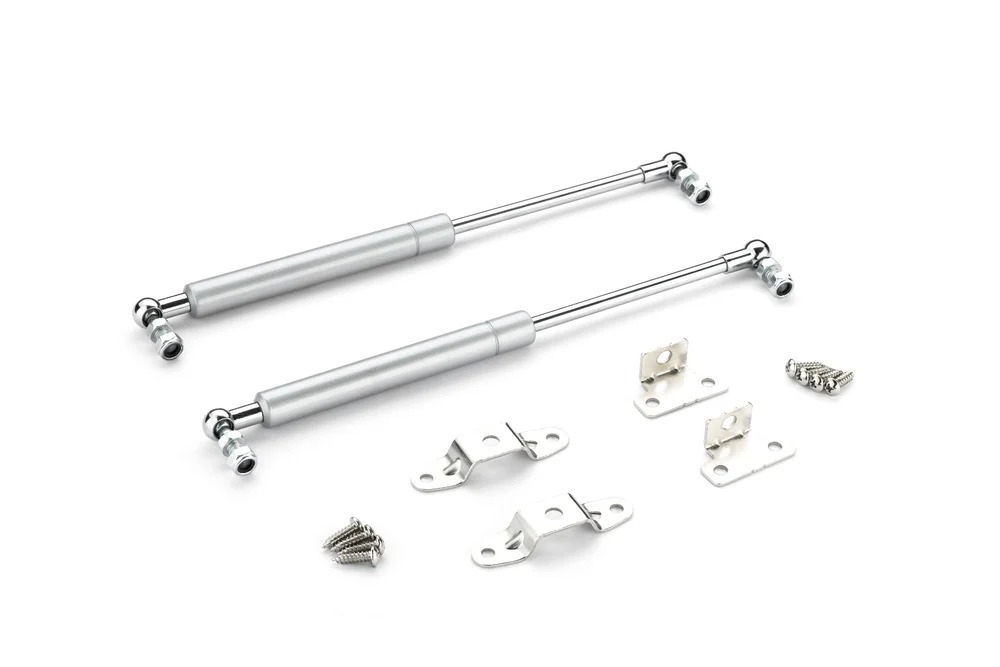

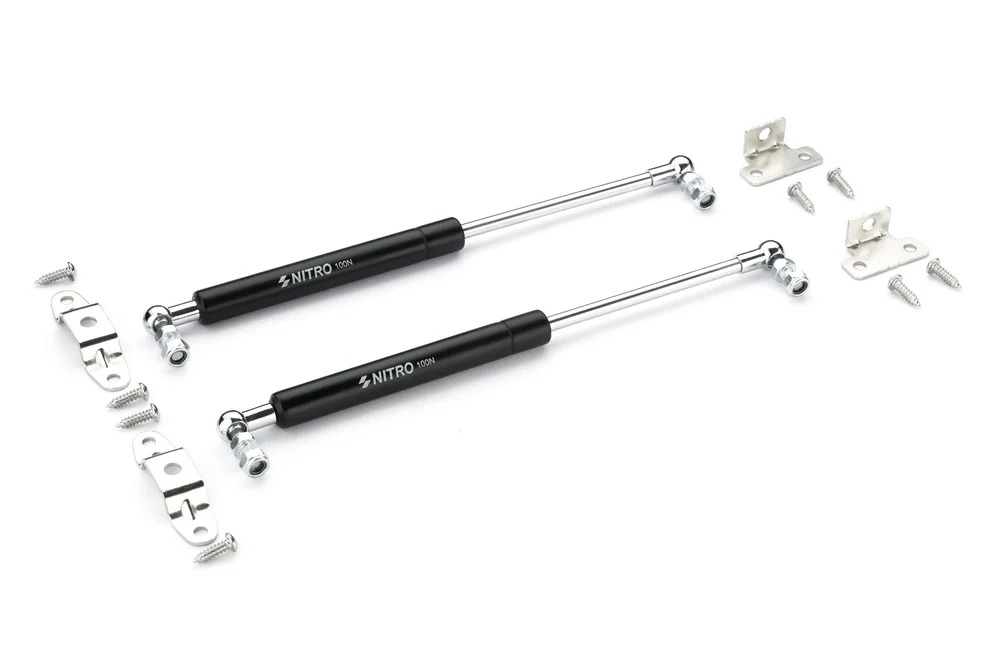

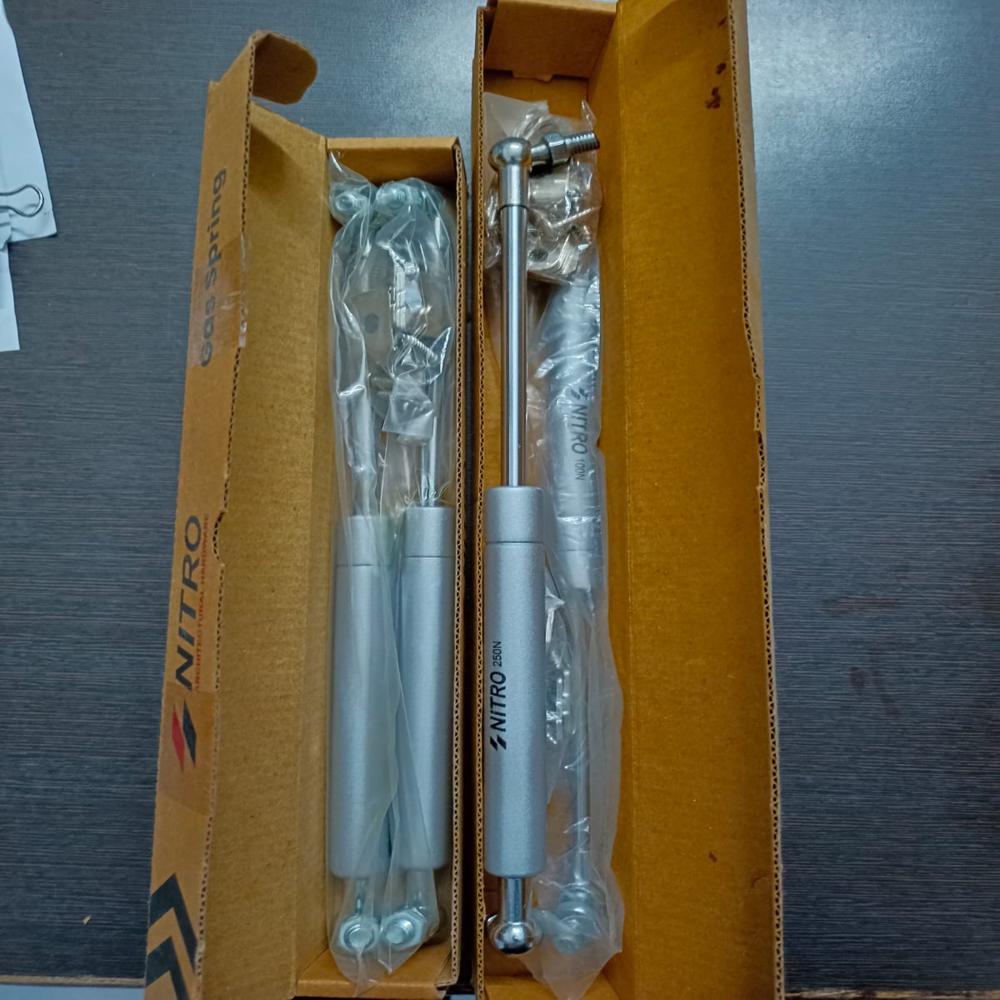

Gas spring

Name: Gas spring
Brand: METAL CRAFT INDUSTRIES
Price: 300.0 INR
Availability: InStock

Price 300.0 INR/ Set

Get a Price/Quote

MOQ : 500 Sets

Gas spring Specification

Structure
Steel tube body, piston rod, gas-filled cylinder, end connectors

Operating System
Manual/Mechanical (push/pull operation)

Weight Capacity
250 Newtons (N)

Type
Compression type gas spring

Feature
Self-contained, maintenance-free, damped movement

Surface Treatment
Corrosion-resistant finish

Usage & Applications
Used in cabinets, doors, hatches, lids, automobile trunks, office chairs and machinery covers

Surface Finishing
Powder coated or Zinc plated

Thickness
Rod: approx. 6-10mm diameter (customizable)

Product Type
Gas Spring / Gas Strut

Material
Steel (rod and cylinder), zinc-plated or powder-coated finish

Size
Standard or customized (typically 100mm-600mm stroke length)

Color
Metallic silver/grey and chrome

Weight
Approx. 100-300g (varies with size)

Installation Type
Bracket mount with ball joint ends

Shape
Cylindrical rod with piston

Cylinder Diameter
15-28 mm (typical options available)

Damping
Hydraulic oil inside for smooth operation

Mounting Position
Any orientation, but usually rod down for optimal lubrication

Durability
Tested for 20,000+ cycles (approximate)

Working Temperature Range
-30C to +80C (varies by manufacturer)

Stroke Length
Customizable based on application (e.g., 100mm, 150mm, etc.)

Rod Diameter
6-12 mm (typical options available)

End Fittings
Ball sockets, eyelets, or threaded ends according to application

Extended Length
Depends on application requirement

Brand/Marking
NITRO 250N (as printed on the product)

Force Adjustment
Factory preset, can be customized upon order

Gas Fill
Nitrogen gas charged

Gas spring Trade Information

Minimum Order Quantity
500 Sets

Delivery Time
15 Days

About Gas spring

Gas springs are used in automobiles to support hatches, hoods, and covers.They are also used in furniture and doors, as well as in medical beds.They are used industrially in machine tool presses.Fast-acting gas springs are used in aerospace design and weapons applications, and large, extended gas springs are used in passive heave compensators, which stabilize drilling operations against waves.

Versatile Design for Multiple Applications

With customizable stroke length and force options, our gas spring suits installations ranging from cabinetry and hatch doors to automotive applications and industrial machinery covers. Choose from a variety of end fittings, including ball sockets and threaded ends, for convenient integration.

Durability, Safety, and Smooth Operation

Engineered with a steel cylinder, internal hydraulic oil for soft damping, and a corrosion-resistant finish, this gas spring is built to last through more than 20,000 cycles. Its self-contained, maintenance-free structure delivers reliable, smooth performance even in demanding conditions.

FAQ's of Gas spring:

Q: How do I select the correct stroke and extended length for my application?

A: Determine your required stroke by measuring the distance the supported object needs to move. Extended length depends on the open position of your lid or panel, and can be customized at the time of order. Our technical team can assist in selecting the proper specifications for your installation.

Q: What end fittings are available for this gas spring, and how do I choose the right one?

A: You can choose from ball sockets, eyelets, or threaded ends based on your mounting requirement. The selection depends on the type of brackets or hinges you use in your installation. Please refer to the mounting guide or consult with our support staff for the ideal fitting.

Q: When is force adjustment required and can it be customized?

A: Force is factory-preset but can be customized to suit the weight and motion profile of your application upon order. If unsure about the necessary force, provide your application details and we can recommend or preset the appropriate force for optimal operation.

Q: Where can these gas springs be used?

A: They are designed for a wide array of uses including cabinets, hatches, office chairs, automobile trunks, machinery covers, and more. Their robust construction and customizable features make them suitable for residential, automotive, industrial, and commercial applications.

Q: What is the installation process for these gas springs?

A: Mounting is typically achieved with bracket mounts and ball joint ends. Gas springs are generally installed rod-down for best lubrication, but can be mounted in any orientation based on your requirements. Always ensure correct force and fitting to avoid premature wear.

Q: How does the gas spring ensure smooth and maintenance-free operation?

A: A nitrogen gas charge combined with internal hydraulic oil damping provides self-contained, smooth movement without the need for regular maintenance. The sealed design and corrosion-resistant finish add longevity and reliability.

Q: What benefits does this gas spring offer compared to standard mechanical springs?

A: Unlike traditional springs, our gas spring offers adjustable force, soft damping, maintenance-free operation, and precise control of lids or covers. It's also tested for enhanced durability and can be tailored to fit your exact requirements.
